6238.4 Crank height adjustment system
Senior basins are made of durable and antimicrobial cast marble. The classical stylish shaped Senior -basin is designed for both public places and private homes. The modern and aesthetic design makes the basin an ideal addition to bathrooms in private homes. The fixed rails support standing and ease approach, and if necessary, can also be used as towel racks. Rails are available in different accent colours, to promote better spatial recognition: white (RAL 9016), grey (RAL 7037) and red (RAL 3003). The rails sustains max. 240 kg.
A water trap, an overflow set, and wall brackets are included. Mounting hardware sold separately. Other furnishings from the Senior series can complement the aesthetics of the basin.
The crank height adjustment system for Senior 600 mm basin. Allows for smooth and easy customization of the Senior basin height via a removable hand crank. Height adjustment range is 200 mm. The recommended operating height of the basin is 700-900 mm. The unit is designed in accordance with the requirements of SFS-EN 14688: 2015. All white metal parts are painted with antimicrobial paint.
The height adjustment rails and plumbing are hidden behind the cover, which makes the system look elegant.
To get a functional unit you need:
- a basin
- mounting hardware, product number: 6208-Z (6 screws in a bag)
- drain pipe (fastener not included), product number: 13982
- water pipe and fasteners, joints for copper pipe, product number: 13970
- fastener and screw to drain pipe, product number: 13983

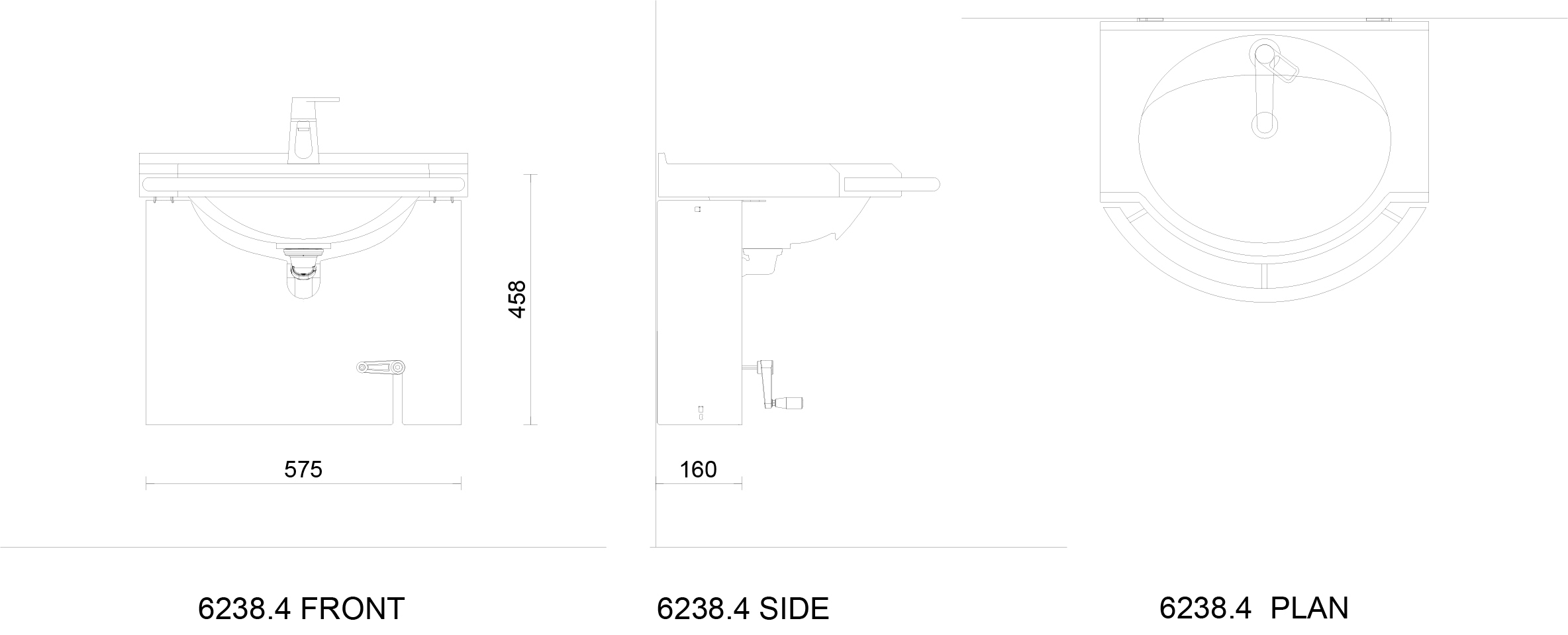

Product details
- Color: white
- Width: 575mm
- Height: 460mm
- Depth: 160mm
