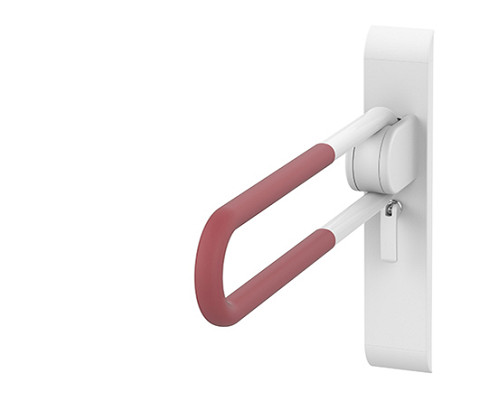

20112 Oval support rail
Oval support rails are circular to maximize the area suitable for gripping. These modern support rails have a chrome-plated or white antimicrobial frame. White rails have an elastomeric gripping surface.
Rails are equipped with hinges that aid with folding, and keeping the rails in an upright position.
Oval support rails include fixed and height adjustable models, with varying modes of mounting. The rails are also customizable via a chest support bar, toilet paper dispenser, and bidet-retainer.
Load tested to 250 kg down and 100kg sideways.
Mounting hardware is sold separately.
Oval support rails are circular to maximize the area suitable for gripping. These modern support rails have a chrome-plated or white antimicrobial frame. White rails have an elastomeric gripping surface. Rails are equipped with hinges that aid with folding, and keeping the rails in an upright position. Load-bearing capacity is 250 kg. Additional hardware is painted steel, with plastic cover plates. The rail Ø 33 x 30 mm. Rails have a height adjustment range of 200 mm. Mounting hardware is sold separately.
Product numbers & colors:
- 20112R White, with red coating
- 20112C Chrome-plated
Product details
- Material: steel
- Width: 106mm
- Length: 750mm
- Height: 540mm
